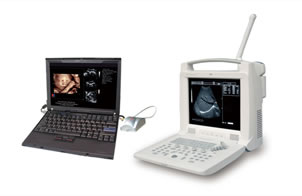

PL-3018I 3D Ultrasound Image Workstation

PL-3018I 3D Ultrasound Image Workstation

Features of PL-3018I 3D Ultrasound Image Workstation:
1. It has 2 USB ports and 2-probe connectors, and its monitor is 12 " LCD.
2. With a net weight of 6kg, it is quite easy to handle.
3. Its 3D ultrasound software can change the 2D image into 3D one.
4. Its probe elements are 96, and the USB can help to upload its picture to PC.
5. It can deliver excellent image with great clarity and accuracy.
6. This PL-3018I digital portable ultrasound scanner with 3D color image workstation has a wide range of broadband high-density transducers for general and special clinical applications in abdomen, OB/GYN, cardiology, small organ and urinary, and many other small parts of human body.
7. It is mainly made up of main unit, 3.5 MHz multi-frequency convex probe, 3D software with softdog and Lenovo laptop.
8. Its optional parts include 1. 7.5 MHz linear probe, 6.5 MHz transvaginal probe, 5.0 MHz micro-convex probe, MITSTUBISHI P93 thermal video printer, and SONYUP-897MD thermal video printer.
9. One-year maintenance is available, and components, other than fragile parts, enjoy life-long services.
10. Our delivery time is 1 to 3 days after receiving the payment.

Specifications of PL-3018I 3D Ultrasound Image Workstation:
1. Its standard probe is 60R/3.5MHz multi-freq convex one; the maximum of its scanning depth is 240mm; and its frequency ranges from 2.5MHz -8.5MHz.
2. 2 connectors have been designed for it, and its blind zone is less than 5mm.
3. Its display modes include B, B+B, B+M, M, and 4B, and its gray scale is 256.
4. Its image amplification can be ×1.0, ×1.2, ×1.5, and ×2.0.
5. Its local zoom is 4-step intelligent zoom in real-time and forzen mode, and the electronical focusing is 4-focus combination.
6. The depth shifts of this PL-3018I digital portable ultrasound scanner with 3D color image workstation are B and B+B modes real time shift.
7. Its lateral resolution is no more than 2mm, and the axial no more than 1mm.
8. The frame correlations are 3-level B and B+B modes.
9. Its images can be reversed up and down, left and right, and black and white.
10. Its measurement includes distance, circumference, area, heart rate, gestational week, fetal weight, and more.
11. Its annotation is mainly comprised of date, ID, age, sex, detecting depth, probe type, focus, and frame correlation.
12. This digital portable ultrasound scanner is designed with Chinese-English inter-conversion.
13. Its cine-loop can be saved in USB disk and recalled for analysis. Besides, it is playback selectable.
14. Its pre-processing includes IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, and line density selection.
15. Its STC has 8 slides for far and overall gain control.

Measurement of PL-3018I 3D Ultrasound Image Workstation:
1. The B mode can be used to measure the distance, circumference, area, volume, ratio, angle, histogram, and profile.
2. The M mode can be employed to measure distance, time, velocity, and heart rate.
3. Its EDD tables are BPD, GS, CRL, FL, HC and AC, and user-defined EDD tables are also available.
4. Its report can be normal report, OB report, GYN report, and urology report.
5. Its management is the patient information one.
6. Its full-screen documentation can display the hospital name, patient name, date and time.
7. The annotation database is available, and the pre-saved phrases can also be recalled.
8. Its obstetric table is mainly composed of BPD, CRL, GS, FL, AC, HC, FW and EDD.
9. Its body marks are more than 40 types with probe position.
10. Its video output is PAL-D and VGA.
11. The 12 " LCD high resolution monitor has been applied.
12. Its power supply is 100V~130V/220V~240V, and 50/60H.
13. Its overall dimensions are 410mm×320mm×410mm.

We are a professional manufacturer and supplier of 3D ultrasound image workstation in China. Apart from 3D ultrasound image workstation, we can also provide other products such as video graphic printer, 3D ultrasound scanner, ultrasound scanner, etc. We have obtained ISO and CE certification. Our products have been well received by customers from many countries, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you are interested in our 3D ultrasound image workstation, please contact us freely.
