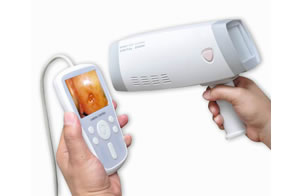

ML-9800B Handheld Video Colposcope

ML-9800B Handheld Video Colposcope

Description of ML-9800B Handheld Video Colposcope:
This ML-9800B handheld video colposcope is a kind of gynecological clinical diagnosis machine, and it is widely applied to diagnose lower genital tract diseases, especially reproductive tract precancerous lesions and early cancer.
Its standard configurations include colposcope and camera control screen, and its optional configurations are monitor, Sony Up-897MD thermal printer, trolley and software. It has received the CE certificate.
Through combining light, power and video for high-resolution imaging, superior diagnostics and information management, it can provide more real, clear and vivid images. It can also collect and store high-quality images of the cervix, vagina and vulva for all women health applications and cervical cancer screening.

Features of ML-9800B Handheld Video Colposcope:
1. This handheld video colposcope can provide doctors with full-screen and high-resolution images.
2. It has no couplers or beam splitters that can degrade image quality, or view field.
3. It is capable of being directly connected with many different monitors, like TV monitor, and PC monitor.
4. There is no need for it to connect with laptop, desktop computer, or other software.
5. Its control camera makes it easy to collect images.
6. Its lighting device can generate 50% whiter and brighter light for true tissue color.
7. Special polarization filter is designed to remove the glare for accurate tissue assessment.
8. The electronic green filter is employed to remove the red color from images without light loss.
9. Designed with advanced image management, it can conveniently store, recall, compare, annotate and transmit images.
10. A large variety of documentation options are available.

Specifications of ML-9800B Handheld Video Colposcope:
1. Lens resolution: 1/4"super HAD color CCD,80,0000 pixel;
2. Lens axial resolution: 470 lines;
3. Lens S/N: 50dB;
4. Lens focus distance: standard 100~400mm; support: 10~1000mm;
5. Field of View: 2.5mm-20mm-320mm
6. Depth of Field: 15mm-40mm 15mm-480mm
7. Lens min illumination: 0.15Lux
8. Lens zoom: 1~128 times
9. Lens image output interface: Video, S-video, PAL;
10. Lens fouse: AF/MF;
11. Lens white balance: AWB;
12. Lens lighter type: LED ring phosphorus gallium arsenide high brightness, long-life light source group (the average life is about 100,000 hours)
13. Lens video-output: PAL, VBS-standard 1.0Vp-p;
14. Power Requirements: AC220V ±10%
15. Power Rating: 500W
16. Brightness adjustment: Automatic electronic shutter
17. Operating temperature: -10°C to +50°C
18. Storage temperature: -20°C to +60°C
19. Relative humidity: 30~80%RH
20. Guarantee promise: one-year maintenance, and life-long service for parts that are not fragile
21. Delivery time: 1-3 days after receiving payment

We are a professional manufacturer and supplier of handheld video colposcope in China. This handheld video colposcope can provide doctors with full-screen and high-resolution images. We can also provide other products, such as portable colposcope, trolley digital video colposcope, etc. Our products have received the certification of CE and ISO. They have been well received by customers from many countries, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you need Handheld Video Colposcope, please don't hesitate to contact us.
